Understanding the Inner Workings of an Electric Compressor

Oct. 19, 2023

Electric compressors play a vital role in various industries and applications, providing compressed air for power tools, equipment, and machinery. Understanding how these devices work is essential for optimizing their performance and ensuring efficient operation. In this article, we will explore the inner workings of an electric compressor, shedding light on its components and the process it undergoes to generate compressed air.

Components of an Electric Compressor

To comprehend how an electric compressor operates, let's first familiarize ourselves with its key components:

1. Electric Motor

The electric motor is the driving force behind the compressor's operation. It converts electrical energy into mechanical energy, powering the compressor's various components and facilitating the compression process.

2. Compressor Pump

The compressor pump is responsible for drawing in ambient air and compressing it to a higher pressure. It consists of pistons or rotors that move back and forth or rotate, respectively, to compress the air. The pump plays a critical role in pressurizing the air before it gets stored in the compressed air tank.

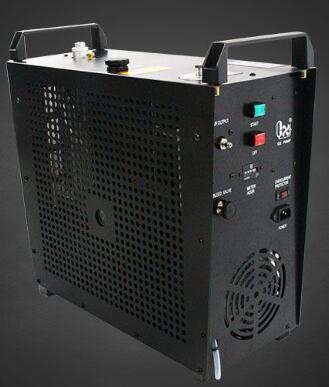

Electric compressor

3. Air Filter

An air filter is a crucial component that ensures the air entering the compressor is clean and free from contaminants. It prevents dust, debris, and other particles from entering the compressor, protecting the internal components and maintaining the quality of the compressed air.

4. Pressure Regulator

The pressure regulator controls the output pressure of the compressed air. It allows users to adjust and set the desired pressure level based on their specific requirements. This component ensures consistent and controlled airflow for different applications.

5. Compressed Air Tank

The compressed air tank serves as a storage reservoir for the pressurized air. It allows for a steady supply of compressed air, ensuring a consistent flow and pressure when using air-powered tools or equipment. The tank also helps to dampen pressure fluctuations and acts as a buffer during peak air demands.

The Working Process of an Electric Compressor

Now, let's delve into the working process of an electric compressor:

Air Intake: The electric compressor draws in ambient air through the air filter, ensuring that it is clean and free from impurities.

Compression: The electric motor drives the compressor pump, causing it to compress the incoming air. The pump's pistons or rotors create a high-pressure environment, reducing the volume of the air and increasing its pressure.

Heat Dissipation: During the compression process, heat is generated due to the increased air pressure. To prevent overheating, electric compressors are equipped with cooling mechanisms such as fans or heat exchangers. These components dissipate the heat and maintain the compressor's operating temperature within a safe range.

Pressure Regulation: The compressed air moves from the pump into the compressed air tank. The pressure regulator monitors and adjusts the output pressure to the desired level set by the user.

Storage and Supply: The compressed air is stored in the compressed air tank until it is needed. When a tool or equipment requires compressed air, the air is released from the tank through the outlet valve, providing a steady and controlled airflow for the intended application.

Cycle Repeats: As the compressed air is used, the compressor pump continues to operate, ensuring a continuous supply of compressed air. The electric motor drives the pump, maintaining the desired pressure level in the tank.


Electric compressors are essential devices for generating compressed air in a wide range of industrial and commercial applications. By understanding their key components and the working process involved, users can optimize the performance of electric compressors, ensuring efficient operation and reliable compressed air supply. We are an electric compressor supplier. If you are interested in our products, please contact us now!
