GX-E-CS3 4500Psi Scuba Tank Compressor Pump



Max. current:28A

Max. Working Pressure:320bar/4640psi

Noise level: 72DB


Working time:≤1h

Air output:11L/min

Packing size:34*22.5*38.5CM

Automatic stop device: Yes

Moisture filtration device: Condensing oil-water、separation filtration

Charging time:500cc tank, from 0 bars to 300 bars need 13-14 mins.

Voltage : 110V/220V AC Voltage or 12V Car Battery

  • Directions for use

High Pressure Air Compressor For Scuba Tanks

Guangxing offers High Pressure Breathing Air Compressors, Nitrox Compressor Systems for Scuba Diving, Dive Shops, Offshore, Dive Commercial Operations and Dive Boats.

How does a compressor work?

Most scuba air compressors operate in four separate stages of compression, gradually filtering, compressing and cooling the air. At each stage of compression, the scuba gear compressor absorbs more water from the air.

Ultimately, the air is compressed to 3,000 to 5,000 psi and deposited into the scuba tank for storage until your next dive.

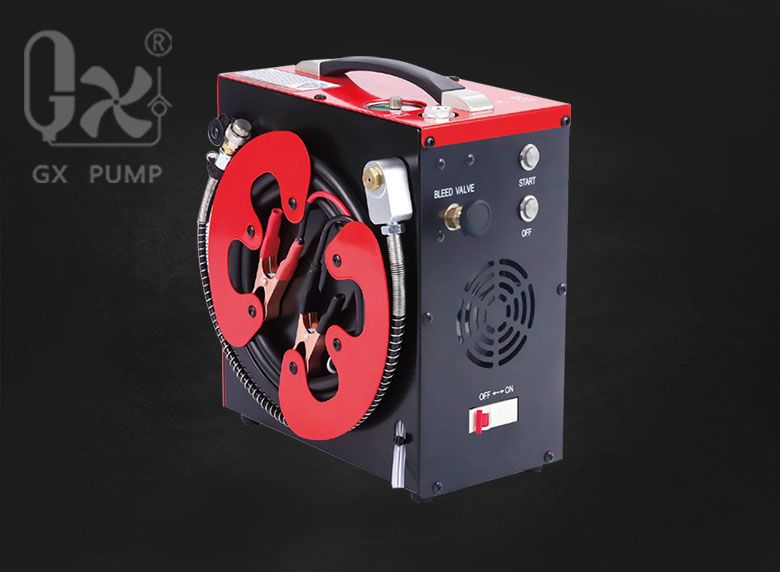

GX-E-CS3 4500Psi Scuba Tank Compressor Pump

Setting the Autostop Value & Built-in Oil-Water Filter :The filling of a rifle or pistol is hassle free with an auto shut off that the user sets at the desired pressure. This eliminates the user from having to watch the fill pressure gauge as the compressor does its job. It also features the moisture filter which will be more safe .Our CS2 and CS3/CS3-I has the better motor and compression structure to keep more stable and long life service.

Car 12V DC or Home 110V AC Power Choice : This air compressor can be powered by the 12V car battery , aslo can be powered by the home AC outlet with the included 110V-12V converter . This will make this pcp air pumb more usefull as you can use it anywhere. You have a 1 year warranty for our every PCP pump .

Oil-Free & Water-Free & Built-in Fan Cooling for Long Life,  the product does not need oil, clean and hygienic, no need for external water pump to cool, easy to operate.

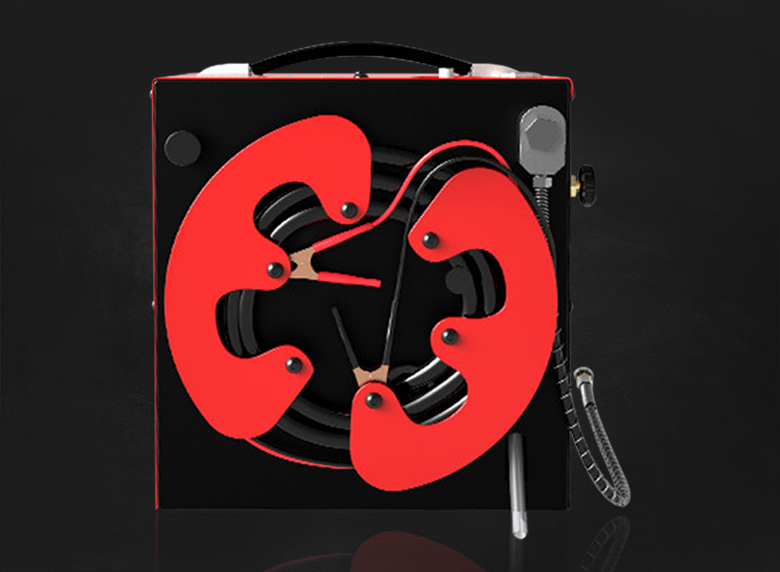

With the wire spool, you don't need to worry about the wire winding and it also looks great. Note: we have applied U.S. Appearance Patent for this .

Package: 1 pcs/Carton

Shipment: By Sea/Air/Land

Free sample: Yes

Customization: LOGO, Color,Appearance
