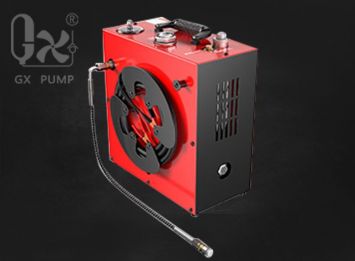

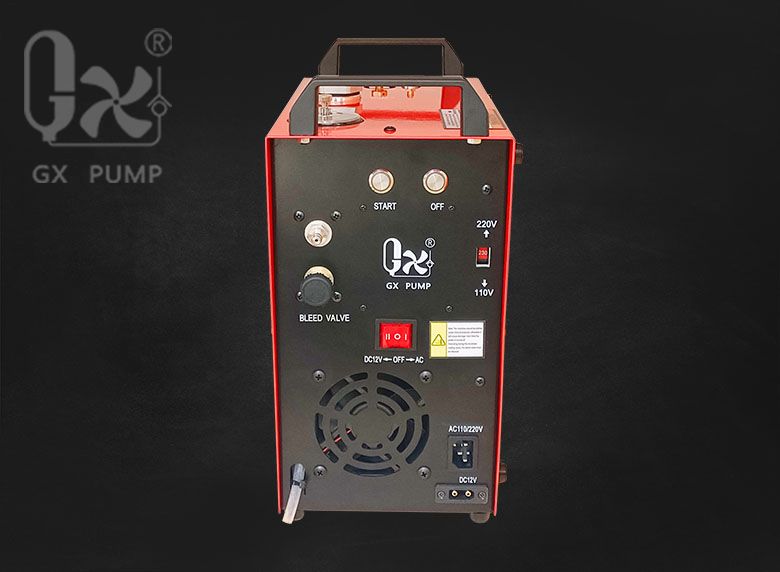

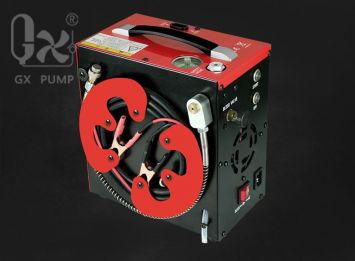

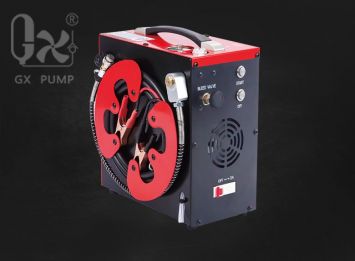

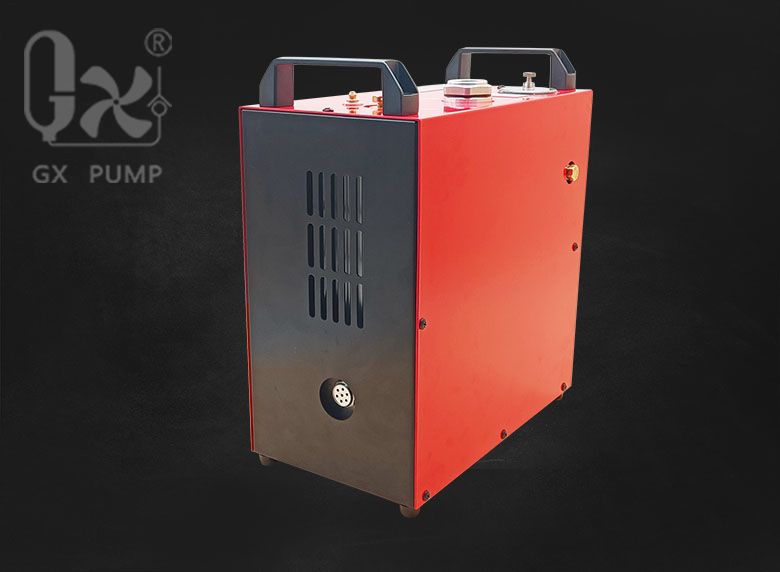

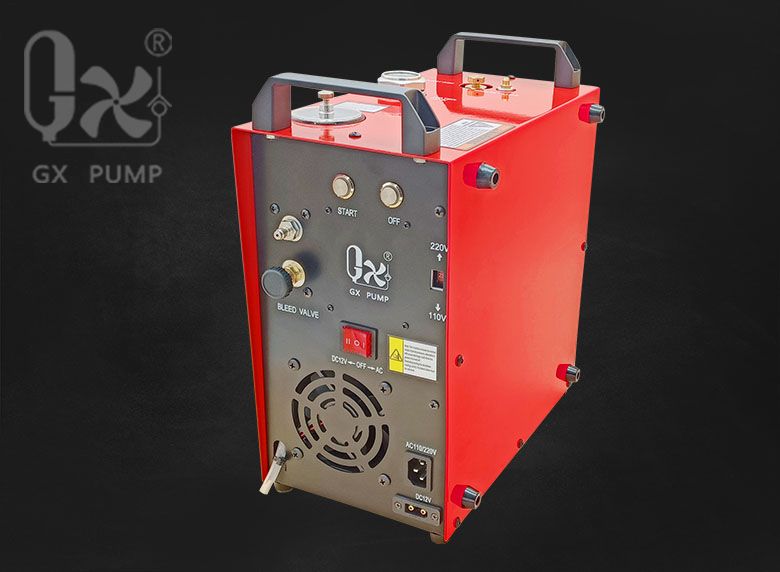

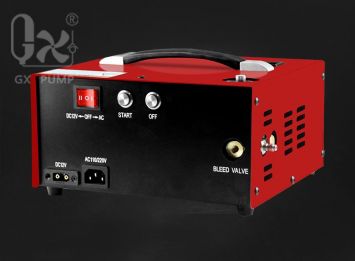

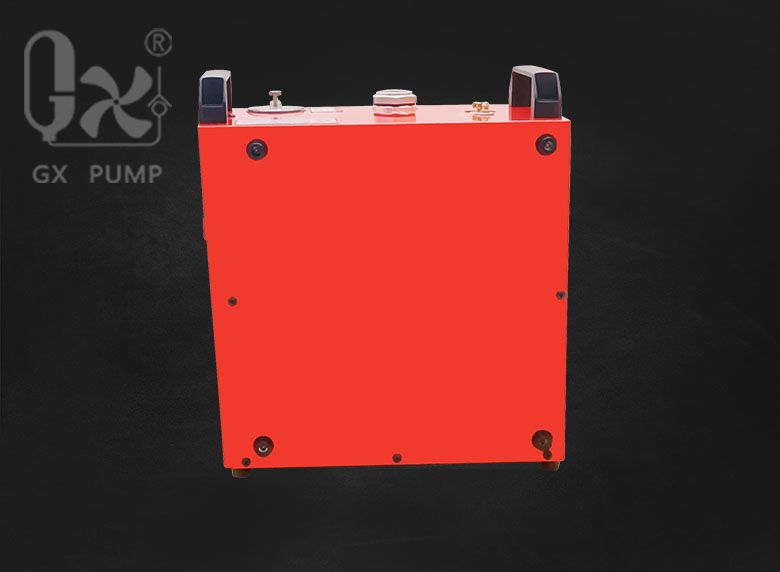

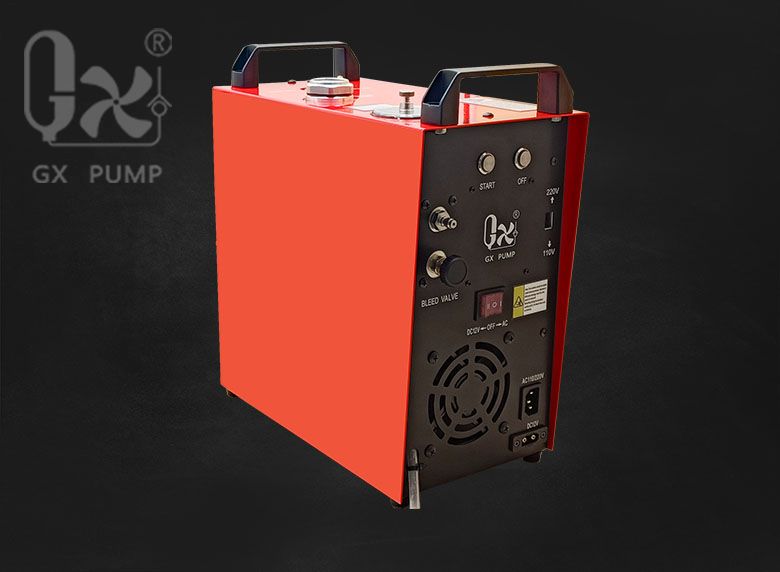

GX-E-CS4-I 4500PSI/5800PSI Portable Compressor


Power:350W           Max current: 30A

Max pressure:400bar/5800psi

Weight:13.5KGS      Working time:≤5h

Packing size:32*15*36cm

Maximum Working Pressure:400bar/5800psi

Packing size:36.6*23.6*44CM

Air output:13L/min     Noise level:65-70DB

Automatic stop device: Yes

Charging time:

500cc tank, from 0 bars to 300 bars need 11-13 mins.

Moisture filtration device: Desiccant filtration

Cooling systerm:water cooling&air cooling

Voltage: 110V/220V AC Voltage or 12V Car Battery

  • Directions for use

Dive Tank Compressor

Scuba diving cylinders are high-pressure vessels that can hold air in the pressure range of about 150 to 300 bar. To fill the cylinders at this pressure, special high-pressure multi-stage reciprocating compressors are required, which can be operated at fixed or variable speeds. They provide a specific high-pressure output and a volume flow rate that allows rapid filling of scuba diving cylinders.

High pressure reciprocating compressors are usually equipped with either electric or diesel engine drives, both of which have advantages and potential disadvantages.

Electric motors offer the following potential advantages

Quiet operation - typically much quieter than diesel engine units

Low maintenance costs - less maintenance is required than their engine counterparts

Guangxing is an outstanding scuba diving compressor manufacturer in China, known for its superior engineering, high quality products and reliable performance. The company is dedicated to developing, manufacturing and marketing advanced scuba diving compressors for a wide range of applications in the diving industry.Recognized for their superior compression performance, safety and sustainability, Guangxing products provide divers with a reliable source of air. Whether you are a professional diver or an enthusiast, you can be assured of a superior underwater experience by choosing a Guangxing scuba diving compressor!

This CS4-I PCP compressor has a new upgraded 350W motor, and adopts four-stage compression technology.  It is very stable when working, and it is very quiet with only 65-70db.  Maximum filling 5800Psi/40Mpa. Notice :First confirm the maximum safe pressure of your gas cylinder, do not over-inflate, otherwise it will cause safety problems.  At the same time, it is equipped with a double-pointer pressure gauge, and the two-level setting auto-stop pressure, which is more secure. A water tank and a grease tank are designed on the top of the compressor.  The excellent cooling can achieve 5 hours of continuous work and can fill a maximum 6.8L gas cylinder.  Note: For the first use, it must be filled with 500ml of neutral distilled water (can not contain impurities such as minerals )or antifreeze ( PH is about 7). Notice :Do not turn the grease knob until after 4-6 hours of use, otherwise will cause bad performance.  then turn it one turn.  Afterwards,if the speed has slowed down and twisted again.  After the break-in period, there is no need to add grease.

Package: 1 pcs/Carton

Shipment: By Sea/Air/Land

Free sample: Yes

Customization: LOGO, Color,Appearance
